基本说明：

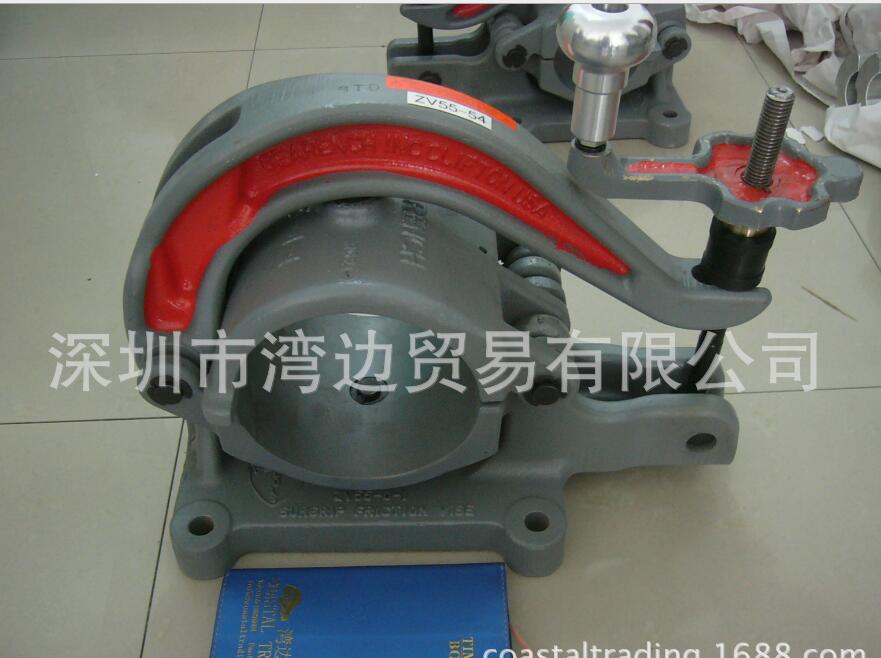

PETOL SURGRIP摩擦钳为油田泵制造商和泵修理厂提供了一种摩擦钳，该摩擦钳具有优越的非冲撞和非磨损特性，可用于表面下泵的最终组装或维修。
SURGRIP摩擦钳有两种尺寸，ZV35-54和ZV55-54。可互换的铝制衬套可满足特定的O.D.要求。| VISE BALL BEARING NUT ASSEMBLY* | ||
| 1,2,3 | VISE NUT HANDLE BOLT, NUT & LOCK WASHER | 1 |
| 4 | VISE NUT HANDLE GRIP | 1 |
| 5 | VISE NUT HANDLE | 1 |
| 6 | VISE NUT CLIP RING | 1 |
| 7 | VISE NUT BEARING COMPLETE | 1 |
| 8 | VISE NUT SLEEVE | 1 |
| 9 | VISE NUT CLAMPING SCREW | 1 |
| 10,11 | VISE BASE CLAMPING SCREW RIVET W/KLIPRING | 1 |
| 12 | VISE BASE | 1 |
| 13 | VISE BASE BUSHING | 1 |
| 14 | VISE BASE SPRING | 1 |
| 15 | VISE BASE SET SCREW | 1 |
| 16,17,18,19 | PLATE NUT & BOLT ASSEMBLY | 4 |
| 20,21 | VISE JAW RIVET W/KLIPRINGS | 2 |
| 22 | VISE BUSHING PLUNGER ASSEMBLY | 2 |
| 23 | VISE CLAMPING ARM | 1 |
| 24 | VISE LOWER JAW | 1 |
| 25 | VISE BUSHING KEY | 4 |
| 26 | VISE BUSHING KEY SCREW | 4 |
| 27 | VISE UPPER JAW | 1 |
*COMPONENTS OF ASSEMBLY ARE ALSO SOLD INDIVIDUALLY. | ||
PETOL， SURGRIP， Friction Vise
型号 |
描述 |
重量 |
ZV35-52 |
少量售完为止，不再生产 |
43 lbs. |
ZV35-54 |
Friction Vise w/4" Nut Handle Assembly |
47 lbs. |
ZV35-1 |
Vise Plate |
9-1/4 lbs. |
HB64 |
Vise Plate Bolt & Nut Assembly (4 req'd. per vise) |
2 ozs. |
ZV35-1-1 |
Riser Pad (4 req'd. per vise) |
2 ozs. |
HP302 |
Vise Plate Lock Pin |
4 ozs. |
ZV55-54 |
Friction Vise w/4" Nut Handle Assembly |
68 lbs. |
ZV55-1 |
Vise Plate |
10-1/4 lbs. |
HB39 |
Vise Plate Bolt & Nut Assembly (4 req'd. per vise) |
2 ozs. |
HP302 |
Vise Plate Lock Pin |
4 ozs. |
ZUV55-35A |
Vise Adaptor Bushings (includes 2 ea. ZUV55-35B-8) |
8-1/8 lbs. |
ZUV55-35B-8 |
Vise Adaptor Bushing Plunger Assembly |
1-3/4 ozs. |
